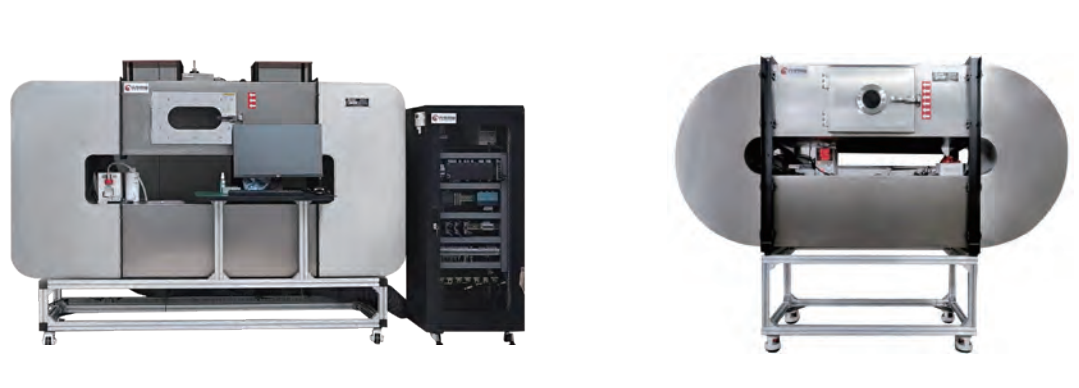

Smoke Detector Test Tunnels
Compliant with: EN54-7 Standards
Enterprise Edition (YH-SM-1100)
Power Supply: 220V 16A
Chamber Dimensions (L x W x H): 2400 mm x 1010 mm x 1400 mm
Laboratory Edition (YH-SM-2100)
Power Supply: 220V 16A
Chamber Dimensions (L x W x H): 2435 mm x 1010 mm x 1660 mm
Features:
● DC fan speed control, with wind speed stability within 0.04 m/s when set at 0.2 m/s. Adjustable wind speed inthe test area:0-2 m/s.
● Temperature control range: Ambient to 55°C (optional:-40°C to 75°C), continuously adjustable. Utilizes matrixheating method to ensure temperature uniformity 2° C,temperature control accuracy better than 1°C, heating andcooling rate 0.5-1°C/min.
● Humidity control range: 25 -95% RH, humidification rate≤ 5% RH/min.(optional)
Equipped with:
● Optical densitometer: Wavelength range 880 nm -950nm.
o For aspirating smoke detectors: Error s + 1%/m.
o For point-type and standalone smoke detectors: Error+ (m x 0.05 + 0.02) dB/m.
● Aerosol generator and real-fire smoke generation device(including smoke generation using cotton rope, wood,polyurethane, n-heptane/toluene).(optional)
● Automatic rotating probe mounting device for alarmconsistency and orientation tests. The test sample canrotate around the vertical axis in 45° increments, with full360° rotation capability.
● Dazzling device to meet ambient light test requirements.
Smoke Injection Rate Requirements:
● For photoelectric detectors: 0.015 dB/m/min < Am/ At <
2%/m/min, resolution 0,01%/m,
● For aspirating detectors: 0.04%/m/min Am/At
Testing Capabilities:
● Alarm set point test, orientation test, alarm repeatabilitytest, high-temperature test, constant temperature andhumidity test: Can test 6 probes simultaneously.
● Orientation test, high airflow test: Can test 6 probes from the same batch simultaneously.
Software Requirements:
● Real-time data display and curve visualization,
● Capable of generating Excel reports.
● Displays test data for all 6 probes from the same batch,including data from various tests.
Test Capabilities
Alarm Threshold Test
Alarm Repeatability Test
High Temperature Test
Orientation Test
High Airflow Test
Constant Temperature and Humidity Test
Constant Smoke Concentration Test
Consistency Test
Ambient Light Test
Low Temperature Test
|
